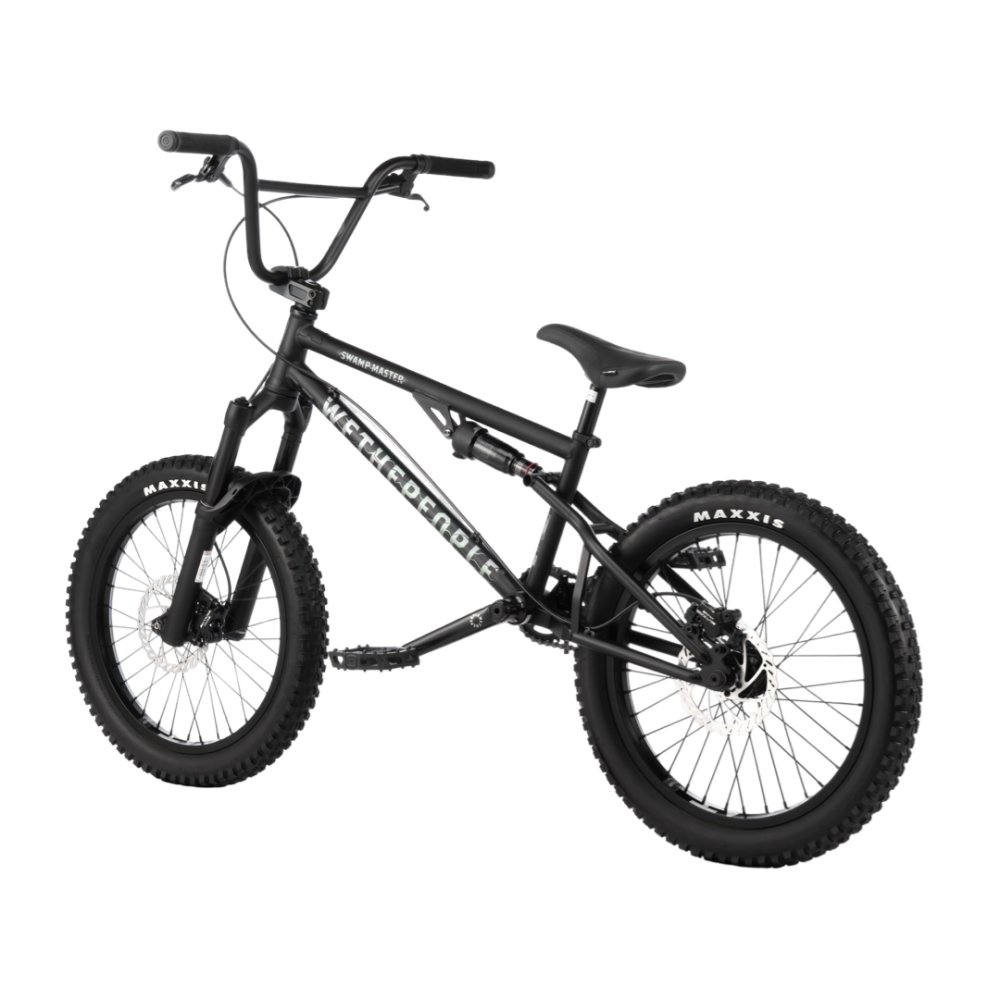

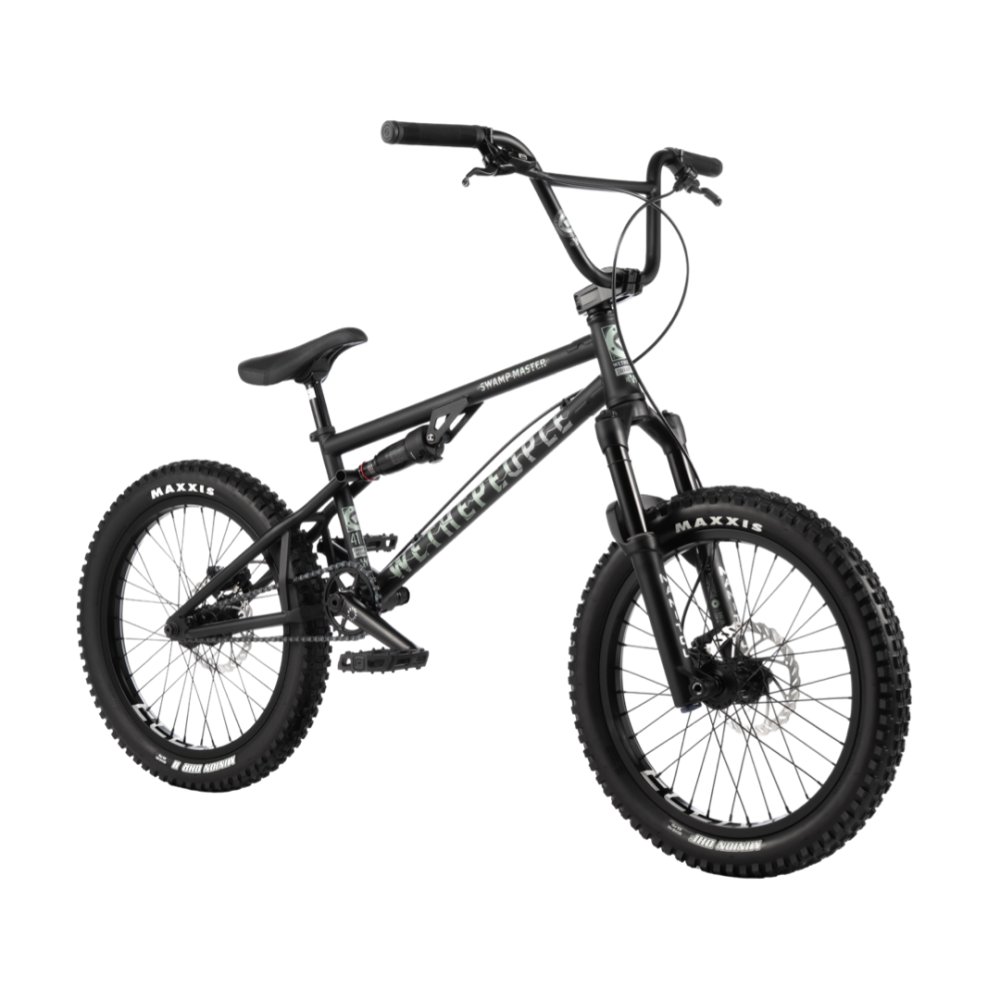

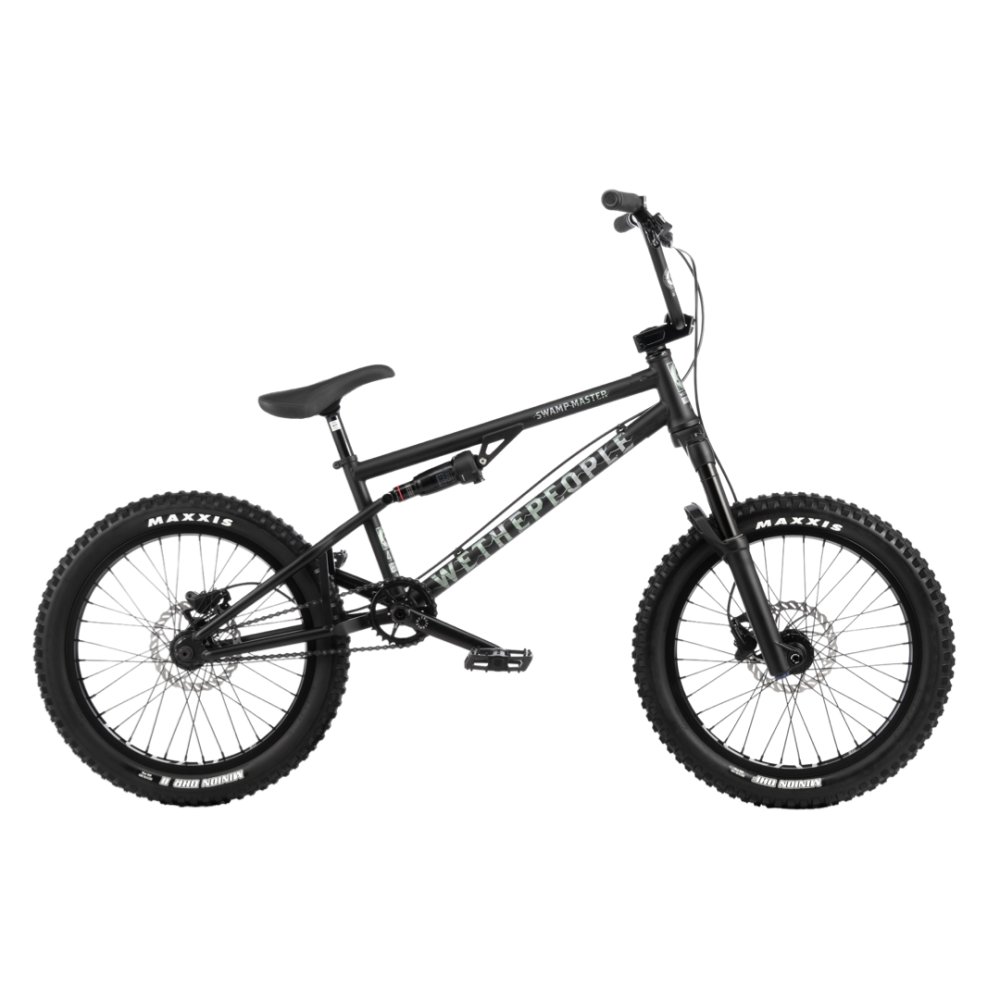

A whole new world of fun, the Wethepeople the Swamp Master is the full suspension complete BMX bike. Inspired by the world of downhill mountain biking, mixed with classic bmx roots and fun, this bike is unique to say the least. Engineered in cologne, germany, the swamp master is designed for serious downhill shredding whilst gaining the movement and freedom that a bmx bike offers. Spec’d with a mixture of our own aftermarket bmx components and genuine mtb parts from kenda and manitou, the swamp master is the first production complete bike of its kind and is set to revolutionise a new chapter in bmx and mtb fusion.
Frame material: |

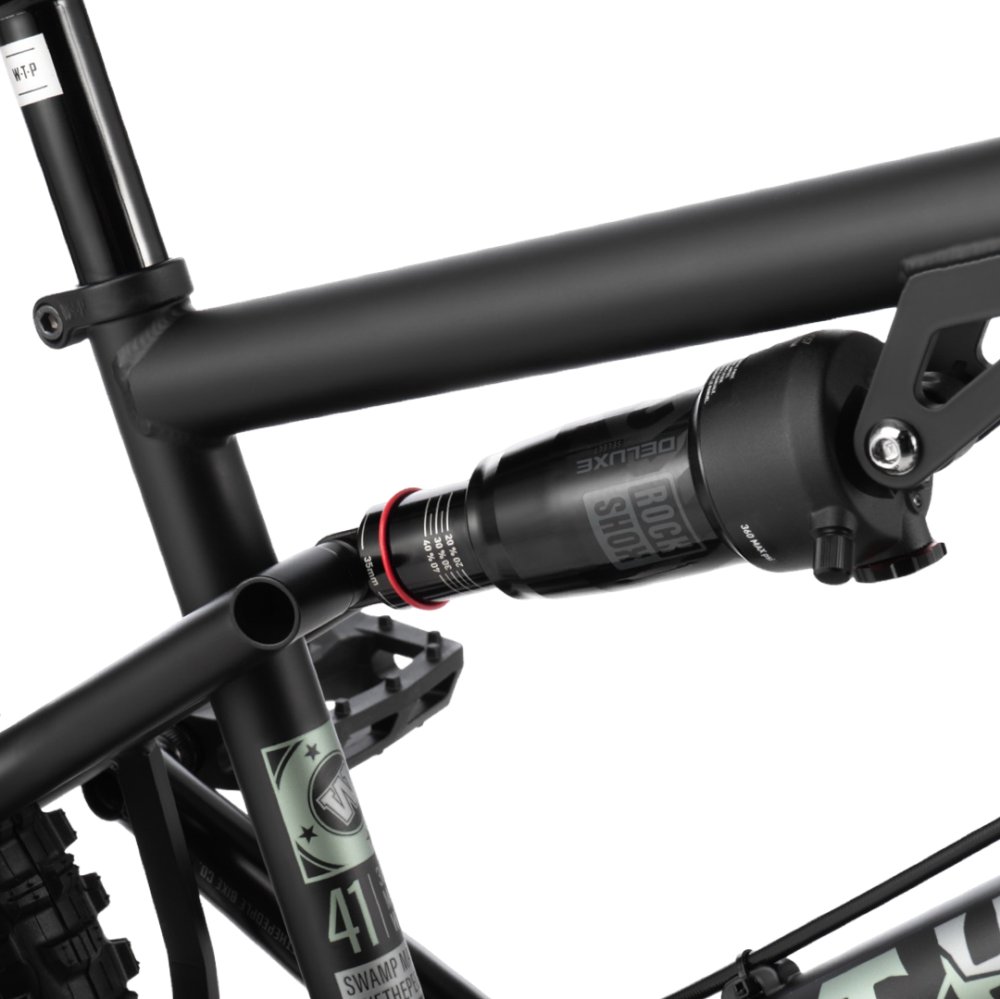

Wethepeople "SWAMP MASTER" frame, 4130 full CrMo, Rockshox Monarch RL shock - 152x31 |
Top tube: |
21.5” |
Head tube: |
71° |
Seat tube: |
70° |
Chainstay: |
14.1” – 14.8” |
Standover: |
9.5” |
BB height: |
12.15” |
Fork: |

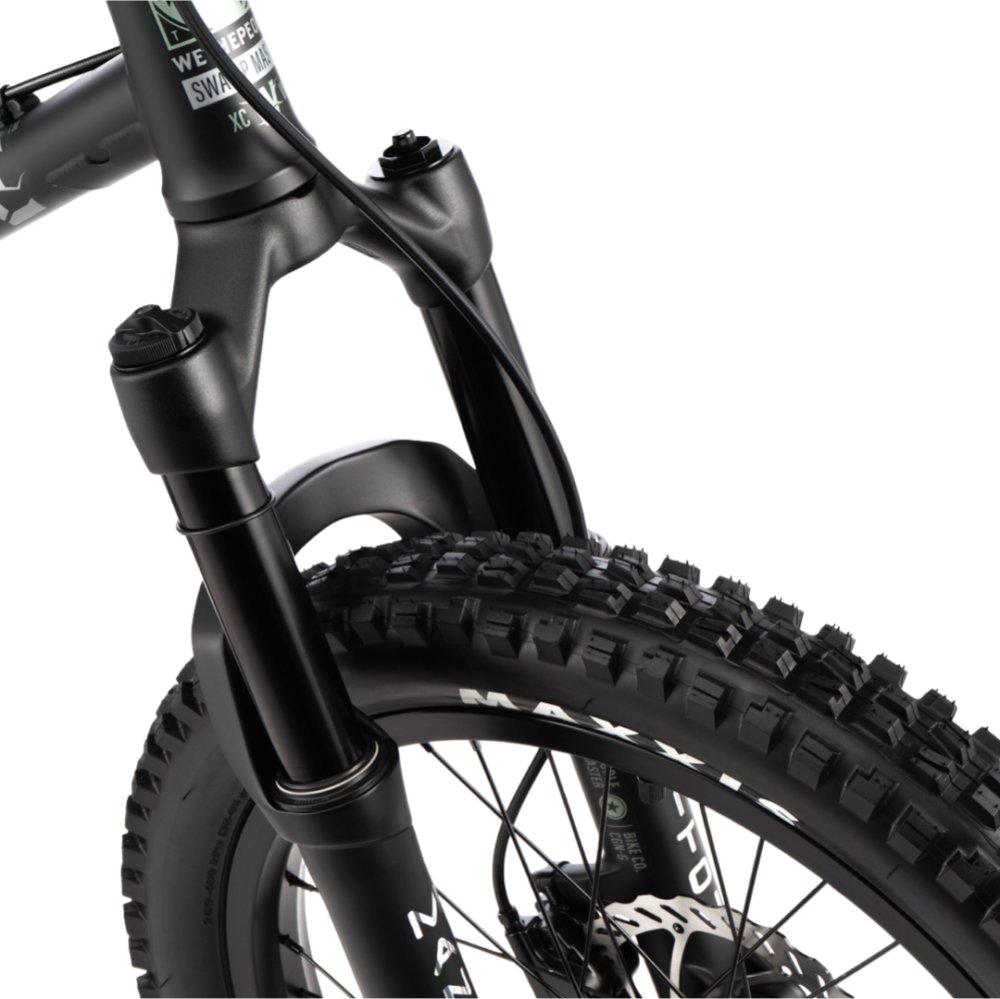

MANITOU "MACHETE J-UNIT EXPERT" fork, adult tuning , 100mm travel |
Handlebar: |
Wethepeople "SWAMP MASTER" 22.2 mm |
Material: |
post liquid heat-treated 4130 crmo |
Handlebars rise: |
8.5” |
Handlebars width: |
29.15” |
Backsweep: |
11° |
Upsweep: |
2.5° |
Grips: |
SALT "EX" grips, 154mm, flangless |

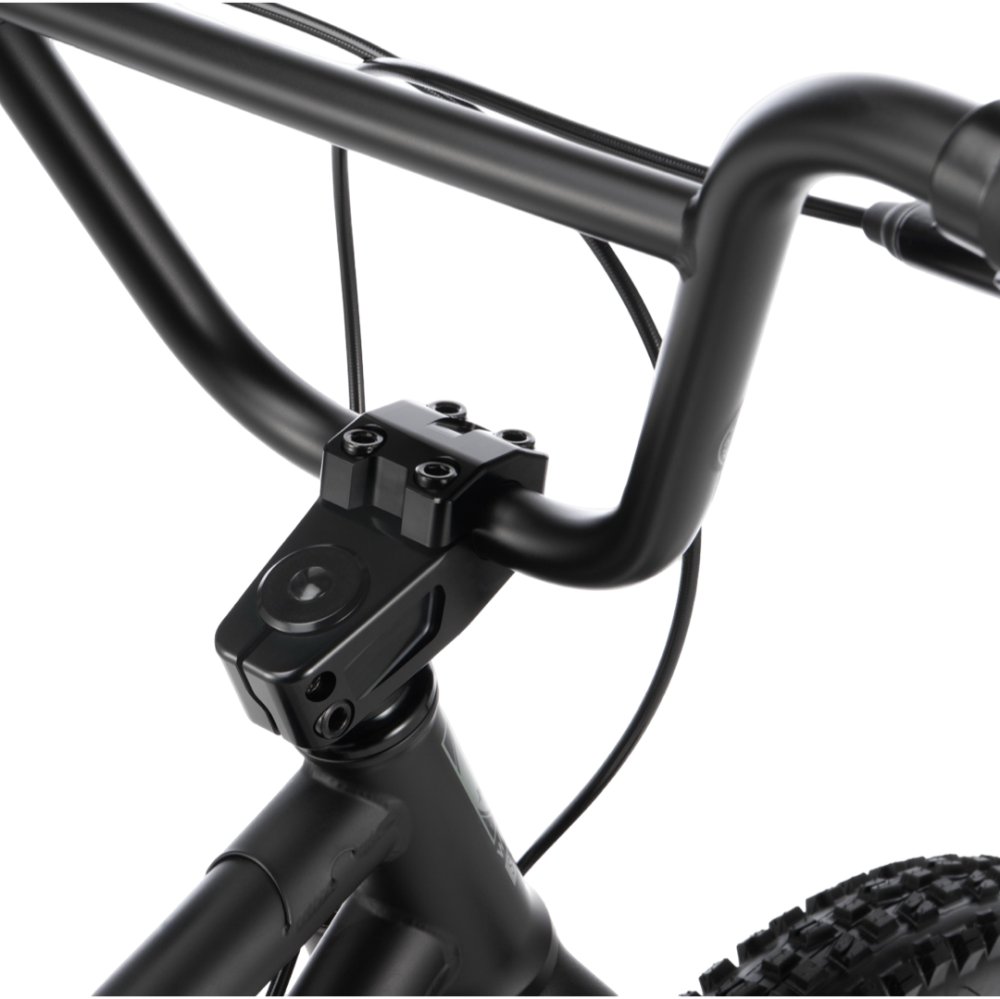

Stem: |
ÉCLAT "METRA" topload stem, cnc alloy, 51mm reach, 30mm rise |
Headset: |
Wethepeople "COMPACT" tapered int. headset, sealed bearing |

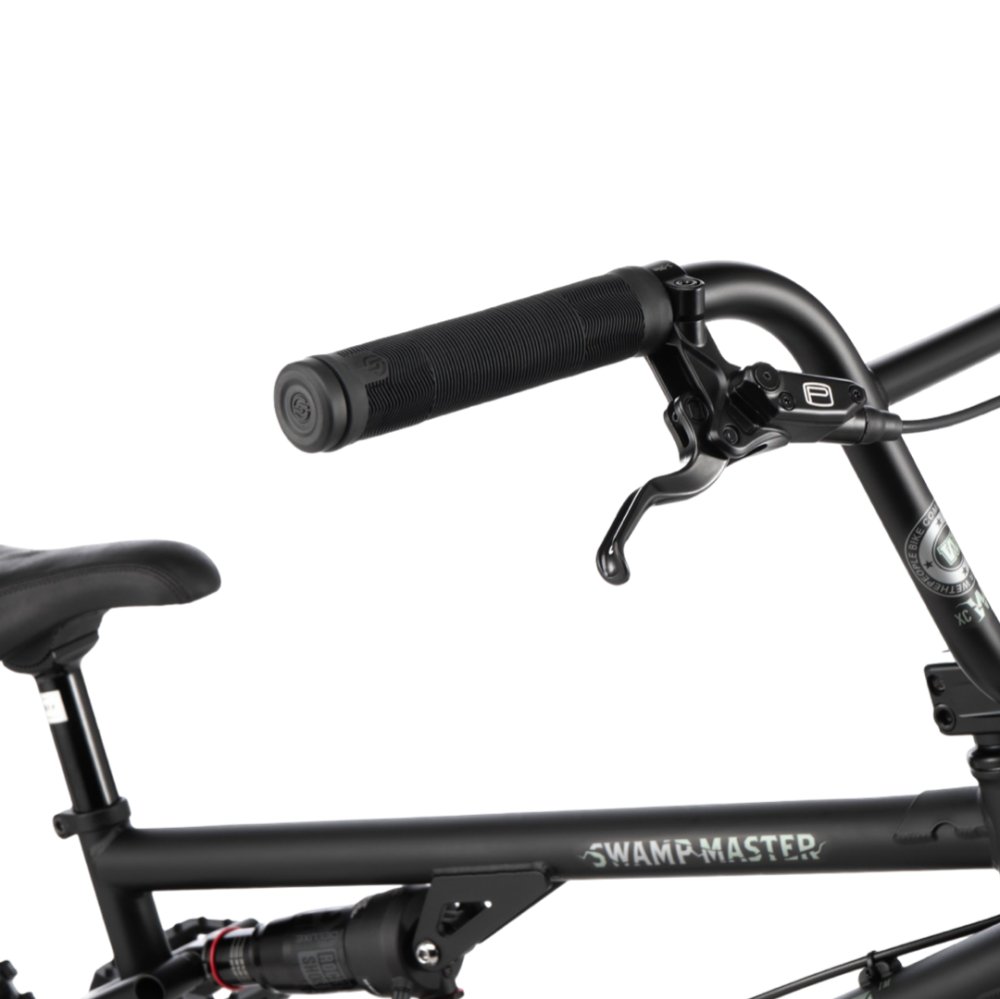

Brake lever: |
BENGAL "ARES 3" |

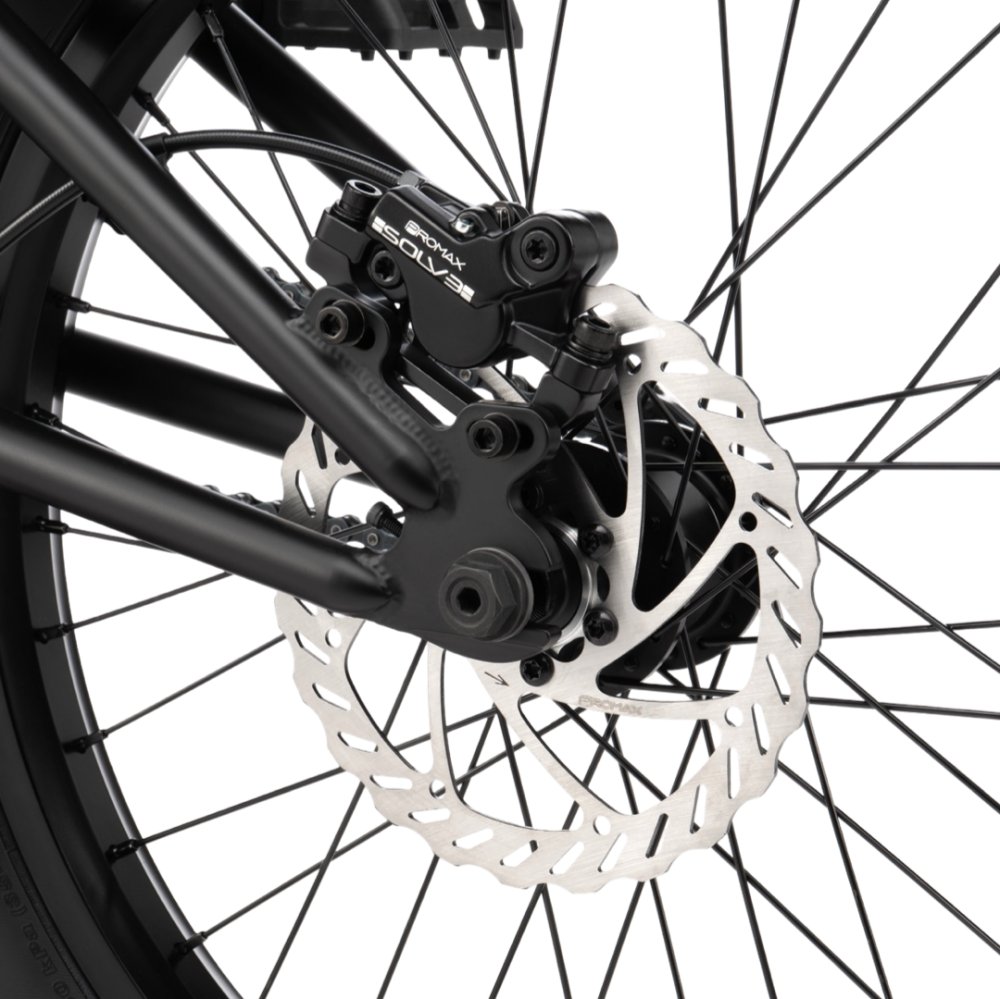

Brake: |
BENGAL "ARES 3" hydraulic disc brakes, 140 mm rotors |
Cranks: |

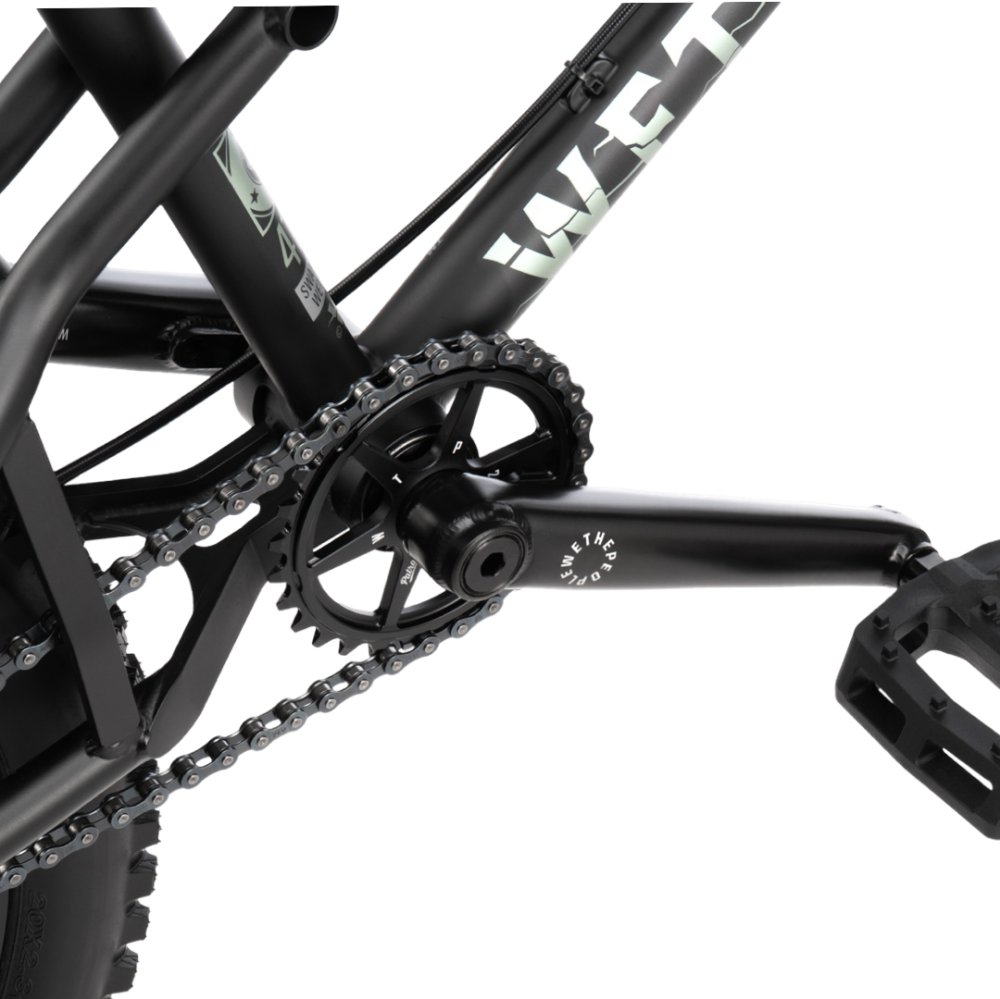

Wethepeople "LOGIC" tubular 3pc crank, 22mm, crmo, 175mm, 48 spline |
Bottom Bracket: |
Wethepeople "COMPACT" bb, 22mm, press fit, sealed bearing |
Pedals: |
Wethepeople "LOGIC" pedals, nylon/fiberglass |
Chain: |
ÉCLAT "DIESEL" chain |
Sprocket: |
Wethepeople "PATROL" sprocket, cnc, 6061-T6 alloy, 28t |
Driver: |
1pc cassette driver, 9t, sealed bearing |

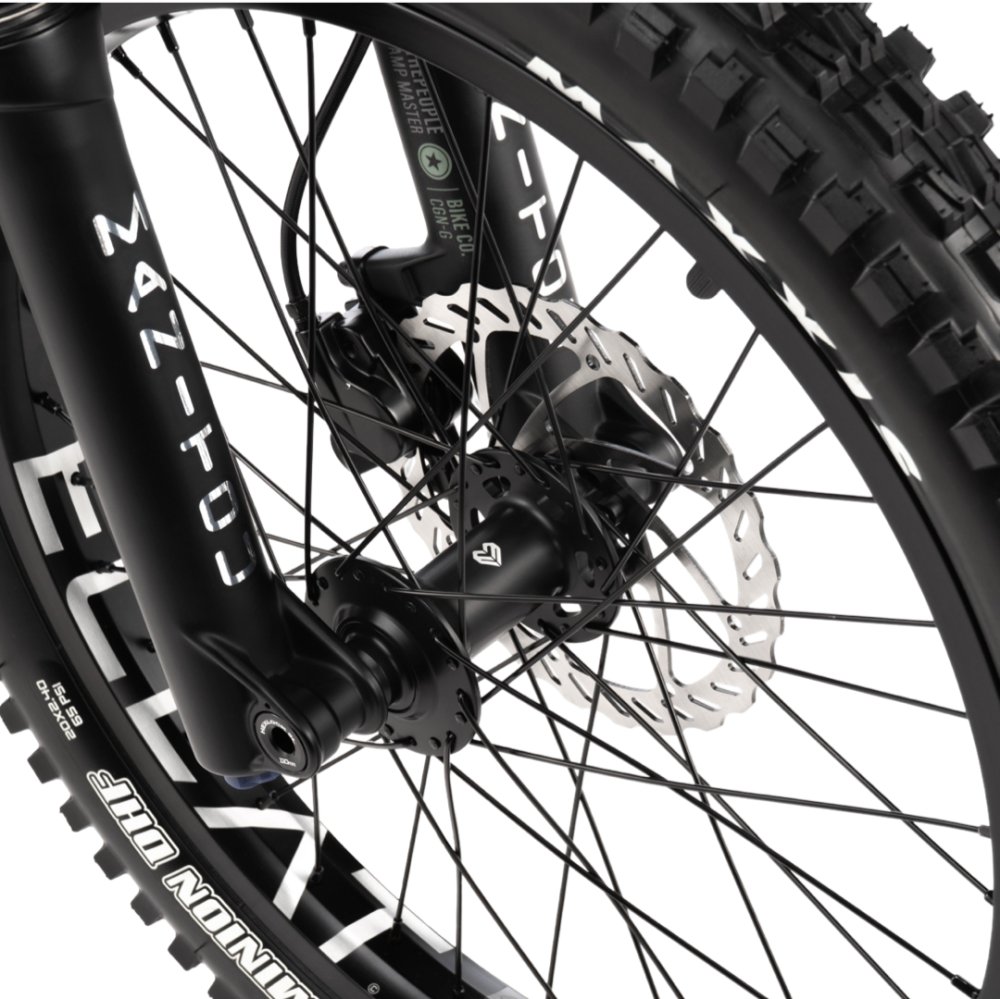

Front hub: |
ÉCLAT "EXILE" disc front hub, BOOST 120mm, fully sealed, 15mm thru axle, 36h |
Rear hub: |

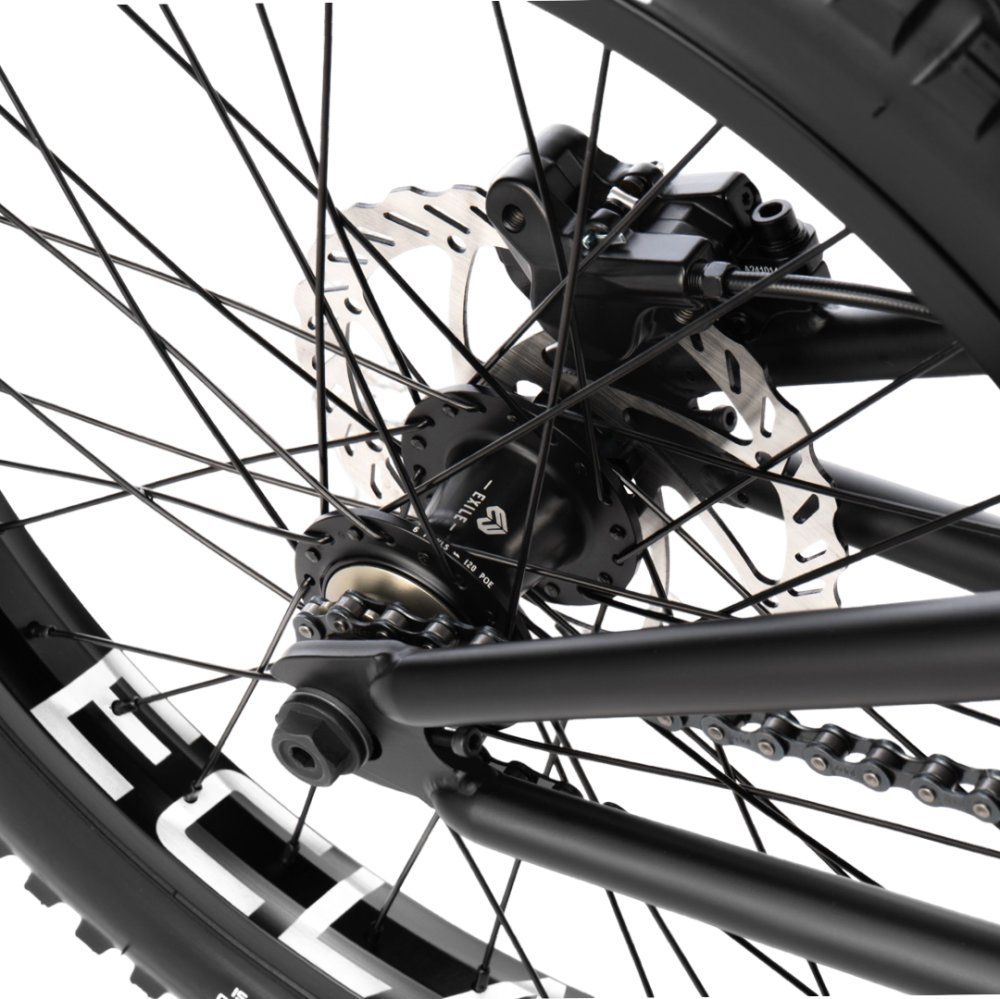

ÉCLAT "EXILE" disc cassette hub, fully sealed, 3/8" female bolts, 36h |
Front rim: |
ÉCLAT "BONDI" rim, 38mm wide, flash welded, double wall, 36h |
Rear rim: |
ÉCLAT "BONDI" rim, 38mm wide, flash welded, double wall, 36h |
Front tire: |
KENDA "KAOS", 20"x 2.60" |
Rear tire: |
KENDA "KAOS", 20"x 2.60" |
Seat: |

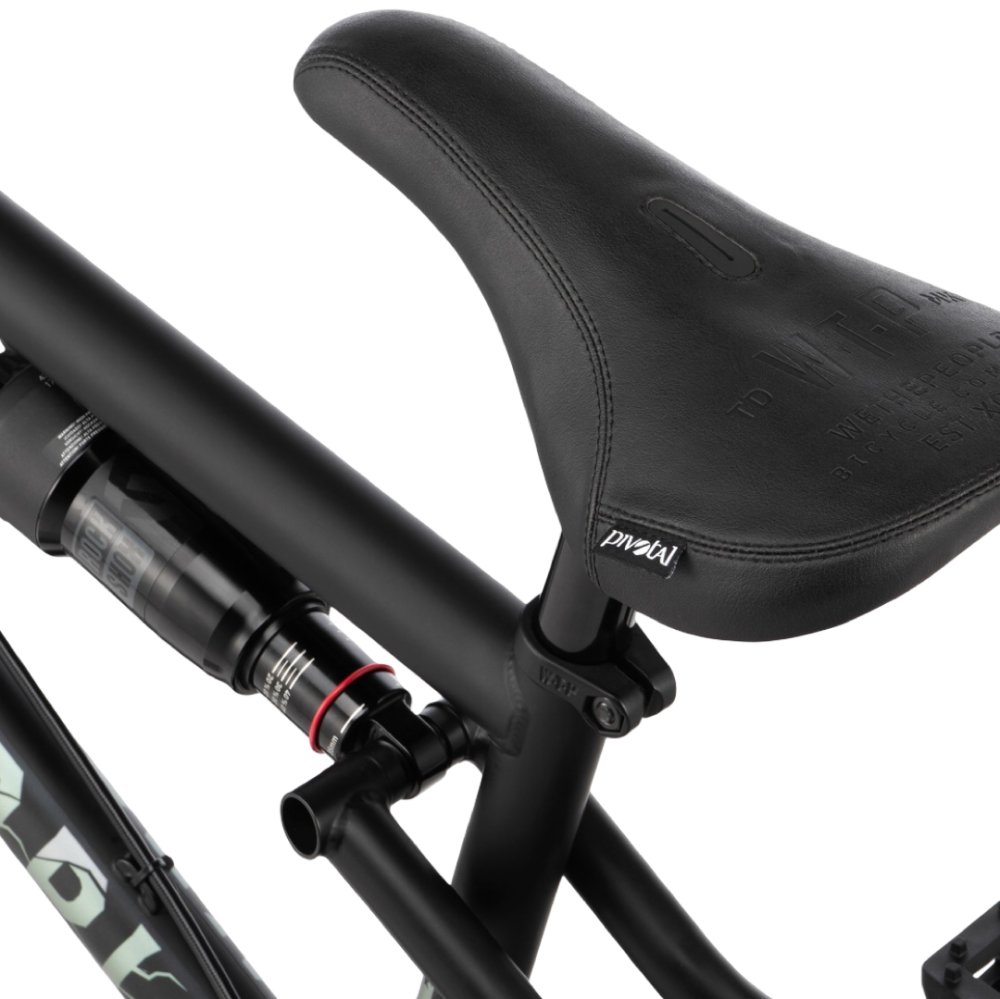

ÉCLAT "BIOS" pivotal seat, slim padded |
Seat post: |
Wethepeople "TEAM" pivotal seat post, 200mm long, 6061-T6 alloy |
Seat clamp: |
integrated |
Weight: |
cca 14.5 kg |
Colour: |
Black |
Wheels size: |
20" |
