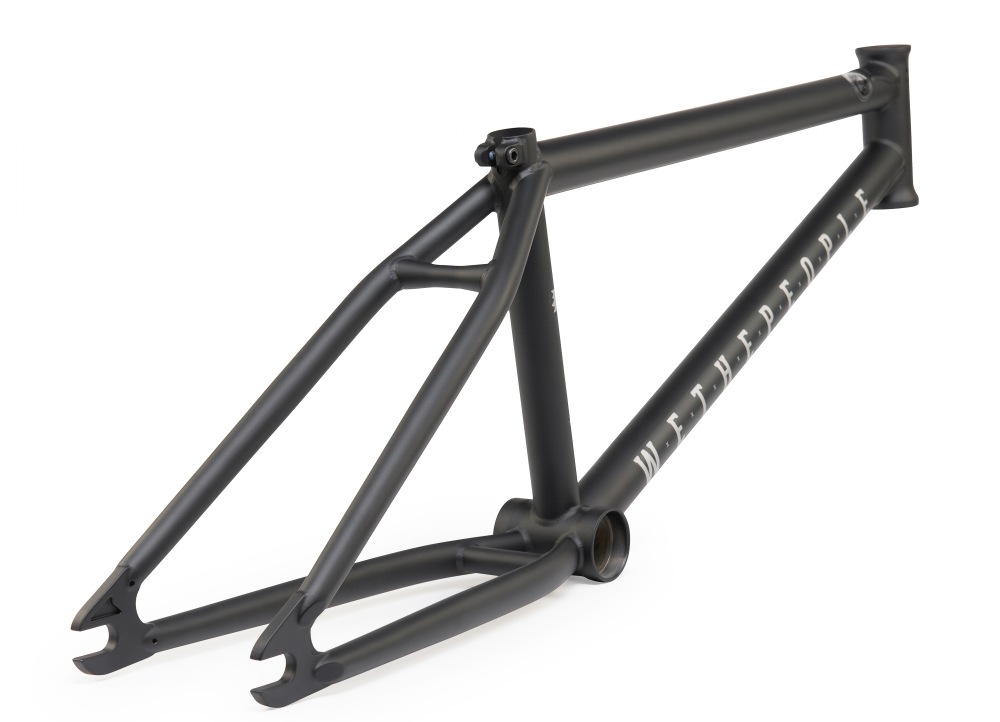

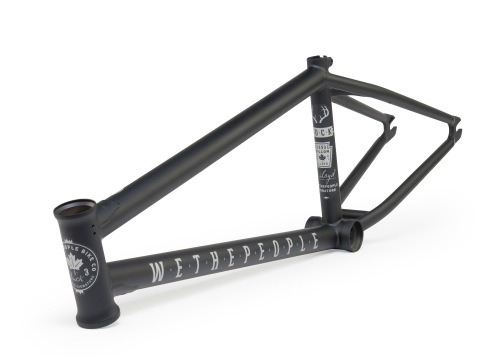

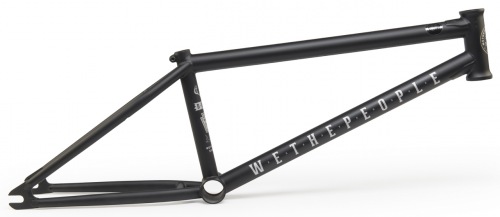

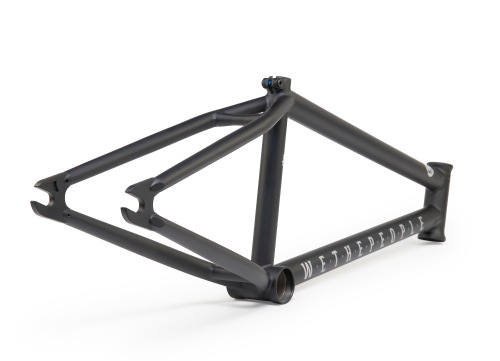

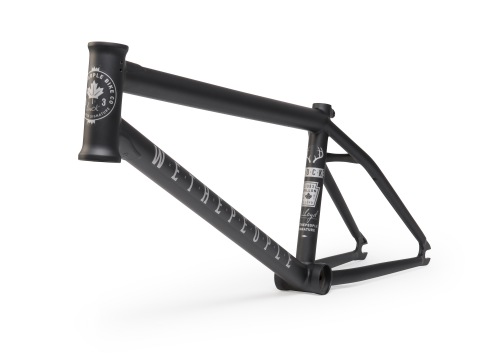

Dillon Loyd`s signature Wethepeople BUCK Frame uses a taller 127mm head tube, allowing you to run taller bar position with uncut fork steerer and no need for loads of ugly spacers. Dillon wanted a steeper 75.5° head tube angle, shorter 13.3° (slammed) chainstay and a taller 11.8" bottom bracket to give him extra clearance on crooked grinds. The Buck's secret weapon is the super tough 7mm thick invest cast dropouts which are designed to run seamlessly into the frame and flush with plastic pegs and hub guards for the perfect fit. If you're looking for a sturdy vessel to get wild on, the BUCK is the one for you.
Frame material: | japanese 4130 CrMo, butted |
Signature: | Dillon Lloyd |
Top tube: | 20.75" or 21” |
Head tube: | 75.5° |
Seat tube: | 71° |
Chainstay: | 13.3” - 13.5” |
Standover: | 9.125” |
BB height: | 11.8” |
Headset: | Integrated headset |

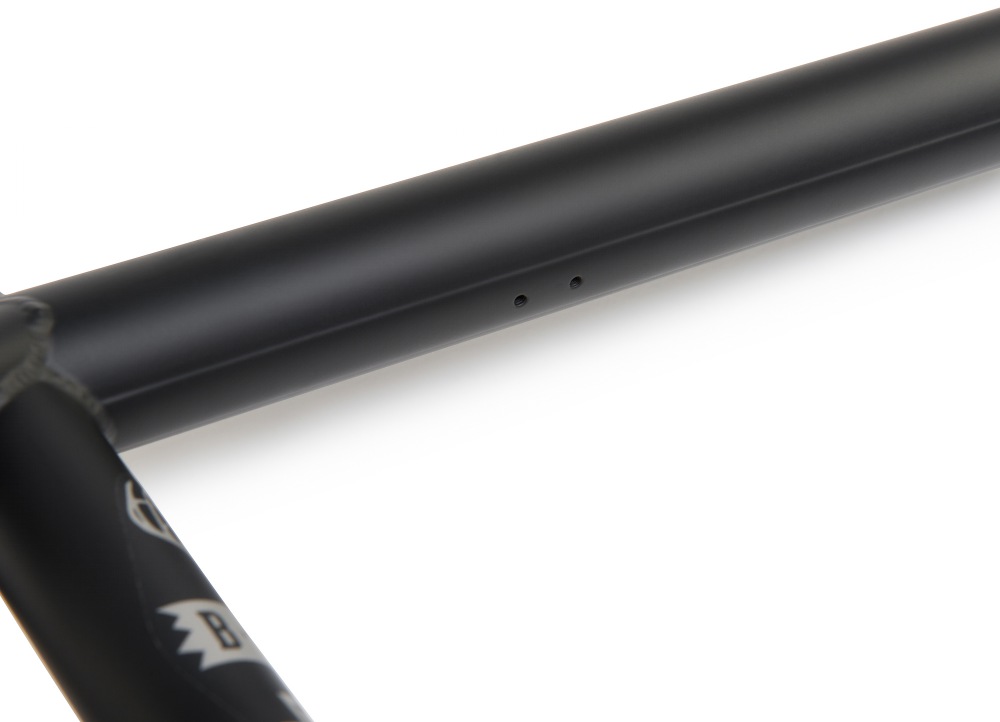

Gyro tabs holes: | yes |
Brake hardware: | completely removable, not included |

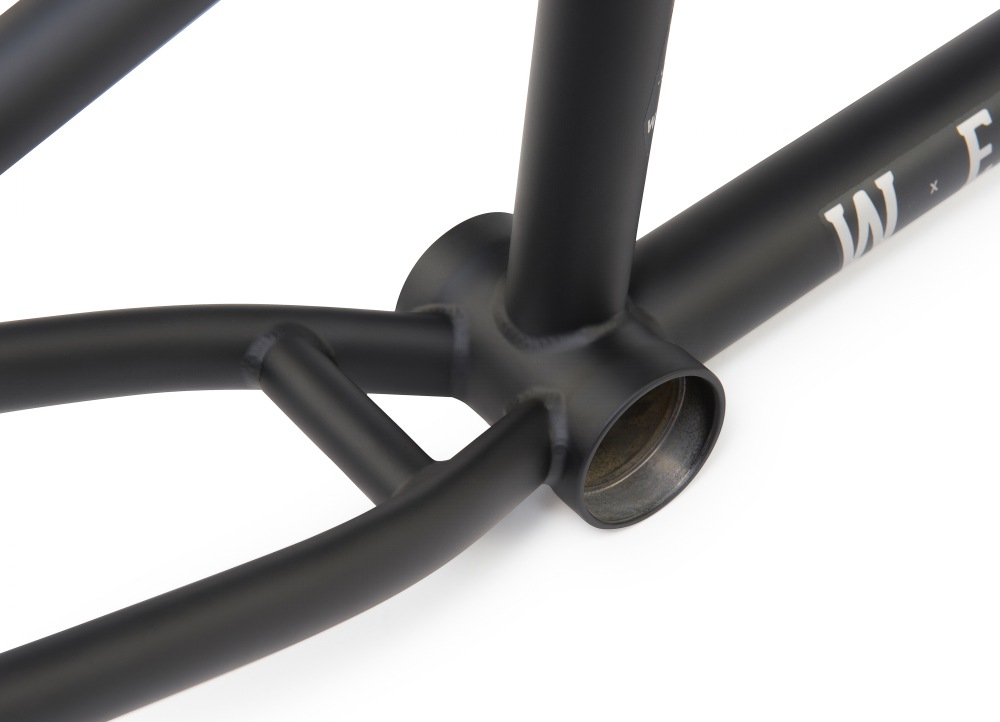

Bottom Bracket: | MID size |

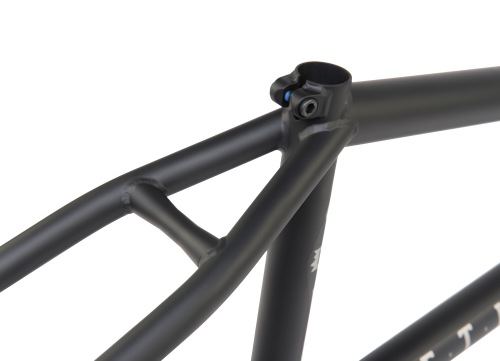

Seat clamp: | integrated |

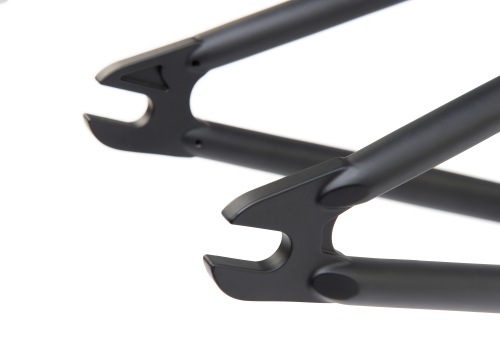

Dropout: | for 14 mm axle, 7mm thick, investment casting |
Frame Weight: | 2.4 (21”) kg |

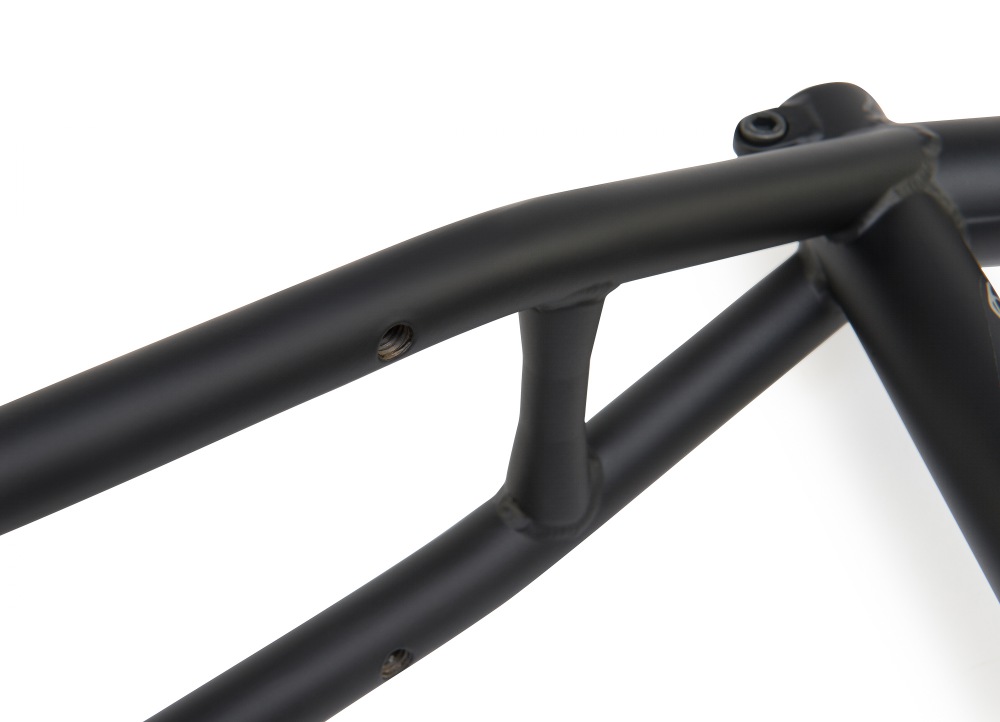

Extra: | CNC machined brake bridge, extended chainstay, tall head tube |
Colour: | Black |
