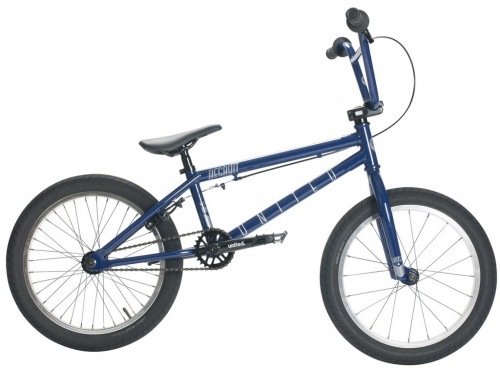

United 2017 RECRUIT 18" Gloss Navy BlueThe United 2017 Recruit 18" has been tailored to the beginner rider with it`s slimmer tubing and carefully selected components to suit smaller riders. Features an ultra loud 4-pawl sealed cassette hub, sealed mid BB, 3-piece forged cranks (8-spline) and micro 25t-9t gearing. Includes United travel bag. THe 18" TT frame will suit a rider 139 to 152 cm tall.
| Frame material: | 1020 hi ten |
| Top tube: | 18" |
| Head tube: | 75° |
| Seat tube: | 71° |
| Chainstay: | 12.25" |
| Standover: | 7.5" |
| BB height: | 10.75" |
| Headset: | 1 1/8" Aheadset - cups pressed into the frame |
| Brake hardware: | welded to frame |
| Bottom Bracket: | Mid size |
| Fork: | 1029 hi ten, tappered legs, CNC steerer tube |
| Handlebar: | 1020 hi ten |
| Handlebars rise: | 7.75" |
| Handlebars width: | 26" |
| Backsweep: | 11° |
| Upsweep: | 1.5° |
| Grips: | United junior, United bar ends |
| Stem: | United top load stem, 40mm reach, embossed united logo on the faceplate |
| Headset: | 1 1/8" A Headset painted to match bike frame colour |
| Twister: | not included |
| Brake lever: | alloy |
| Brake: | ARTEK, u-brake rear |
| Brake hardware: | welded to frame |
| Cranks: | 3pc, 140mm, hollow, 8 spline, United logo |
| Bottom Bracket: | United MID BB - sealed bearings |
| Pedals: | United Junior - plastic |
| Chain: | United Supreme X410 |
| Sprocket: | United, 25T (teeth), steel |
| Driver: | 9t (teeth), 1pc, SB - sealed bearings |
| Front hub: | 20 spoke holes, 10mm axle |
| Rear hub: | Cassette, 36 spoke holes, 10mm axle, 9t driver - sealed bearings, 4 pawl, ultra loud mechanism |
| Front rim: | alloy, single wall, 20 spoke holes |
| Rear rim: | alloy, single wall, 36 spoke holes |
| Front tire: | United Direct 18 x 2.1" |
| Rear tire: | United Direct 18 x 2.1" |
| Seat: | United recruit junior |
| Seat post: | 25.4 mm diameter, steal seat lock |
| Seat clamp: | alloy |
| Pegs: | not included |
| Weight: | 9.2 kg |
| Colour: | Blue |
