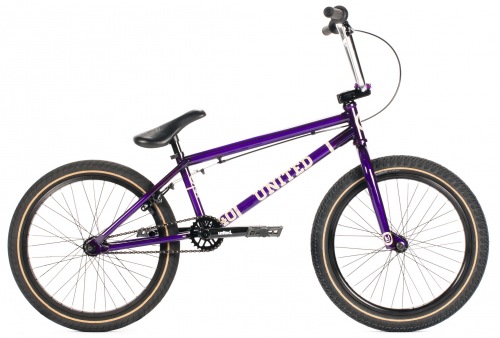

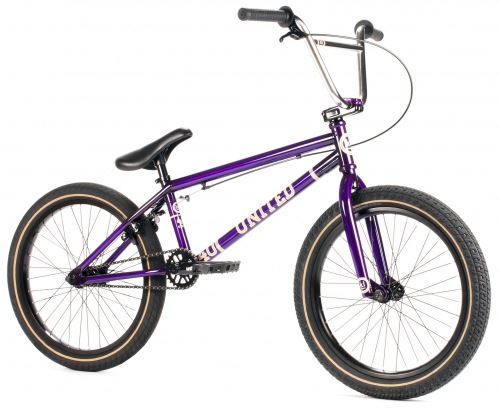

United 2015 KL40 20.4" Trans PurpleUntied 2015 KL40 20.4" is a new model based on Kye & Leo Forte's signature line. It is equiped with nearly the same parts as Supreme, suited for the lower intermediate class with body height beetween 136cm and 159cm. The main difference between theese two completes is geometry of the frame with longer TT 20.4"(top tube). This and lower head tube angle 74.5° makes this bike more stable. Classic 8.5" handlebars, wide United Indirect 2.35", aero rims with rounded walls at the front and industrial bearings. Both chainstay and fork are designed for tyres width up until 2.40". If you're more of a dirt/ trails rider who visits some local skateparks too, than you just found yourself an ideal ride.
Check out this link on HOW TO PICK UP A NEW BIKE.
| Frame material: | 1020 hi-ten |
| Top tube: | 20.4" |
| Head tube: | 74.5" |
| Seat tube: | 71° |
| Chainstay: | 13.25" |
| Standover: | 8.25" |
| BB height: | 11.8" |
| Fork: | 1020 hi-ten, CNC, 1" steerer tube, tapered legs |
| Handlebar: | 1020 hi-ten |
| Handlebars rise: | 8.5" |
| Handlebars width: | 28" |
| Backsweep: | 12° |
| Upsweep: | 1° |
| Grips: | UNITED “Jimmy” plastic bar ends |

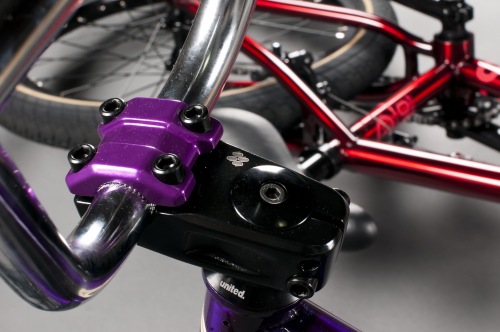

| Stem: | UNITED, top load, 50 mm length |
| Headset: | UNITED int. headset, SB - ball bearings |
| Twister: | not included. possible to add |
| Brake lever: | alloy aluminium |
| Brake: | ARTEK, u-brake rear |
| Cranks: | UNITED hollow 3-piece CrMo 170 mm long, 8 grooves |
| Bottom Bracket: | UNITED “MID BB”, fully sealed bearings |
| Pedals: | UNITED “Valentino” Nylon |
| Chain: | UNITED “Supreme X410” |
| Sprocket: | UNITED steel 25T (teeth) |
| Driver: | 9t (teeth), 1pc, fully sealed bearings |
| Front hub: | ALuminium, SB - fully sealed, 10mm axle, 36 spokes |
| Rear hub: | UNITED “Supreme” aluminium, SB- fully selaed, 14mm axle, 36 spokes |
| Front rim: | Aluminium, Aero profile, single-wall, 36 spokes |
| Rear rim: | Aluminium, Aero profile, single-wall, 20 spokes |
| Front tire: | UNITED “Indirect” 2.35” |
| Rear tire: | UNITED “Direct” 2.10” |
| Seat: | United "KL40" combo |
| Seat post: | integrated |
| Seat clamp: | alloy aluminium |
| Pegs: | not included |
| Weight: | 11.29 kg |
| Colour: | Purple |
