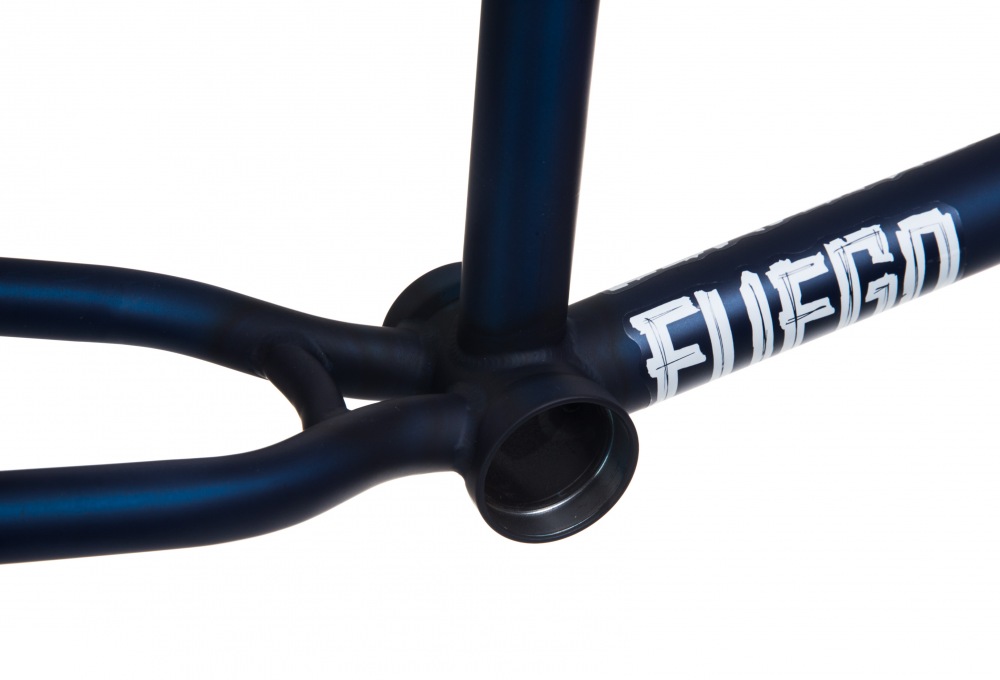

The Flybikes Fuego 4 is a latest version of street wizard Devon Smillie`s signature frame, now with a shorter 13" chainstay! The Fuego frame is made from full 4130 chromoly tubing and is ready for any abuse you can put it through. 2017 model has been upgraded with both top and down tube gussets to further increase strength. Devon has chosen a 75.5° head tube angle, 9.25" standover height and a 11.75" heigh bottom bracket to keep it up out the way during grinds. Another features are integrated chain tensioner, mid sized investment cast dropouts or investment cast seatclamp & seatstay bridge. Removable mounts although brake kit is NOT included.
Frame material: | Japanesse Seamless 4130 CrMo |
Signature: | Devon Smillie |
Top tube: | 21"TT |
Head tube: | 75.5° |
Seat tube: | 71° |
Chainstay: | 13" |
Standover: | 9.25" |
BB height: | 11.75" |
Headset: | Integrated headset |
Gyro tabs holes: | yes |
Brake hardware: | completely removable, not included |
Bottom Bracket: | mid size |
Seat clamp: | integrated, investment casting |
Dropout: | investment casting, one removable chain tensioner |
Frame Weight: | 2.33 kg |
Extra: | headtube length: 113 mm |
Colour: | Blue |
