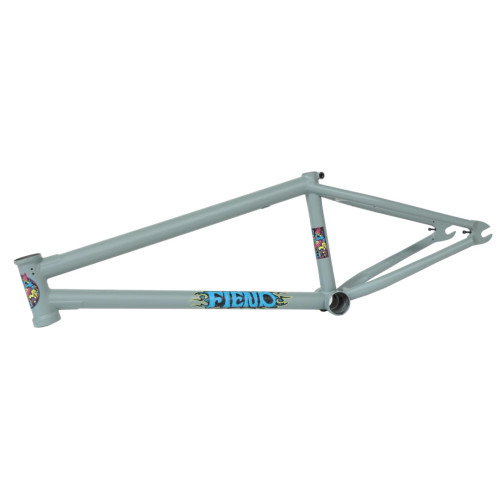

Fiend SHAPESHIFTER 320 CS Frame Flat GreyFiend Shapeshifter 335 is a street frame designed alongside the Fiend team. Its heat-treated 4130 CrMo construction uses external and internal gussets on the top and down tubes. A double-butted top tube and externally butted seat tube with an integrated seat clamp reinforce key stress areas.
A heat-treated Mid BB shell and a head tube tapped for gyro tabs complete the main frame construction. Single-bend chainstays lead into 8mm investment cast dropouts with integrated chain tensioners for precise rear wheel adjustment. Flush-mounted brake lugs allow brake installation, while brake hardware is sold separately. The rear end measures 320 mm (12.75" slammed).
Specifications:
- Colorway: Matt Closson
- Frame material: Heat-treated 4130 CrMo
- Reinforcement: External and internal top and down tube gussets, double-butted top tube, externally butted seat tube
- Head tube: Heat-treated, tapped for gyro tabs
- Gyro tabs: Head tube is tapped for gyro tabs
- Brake mounts: Flush-mounted, brake hardware sold separately
- Bottom bracket type: Heat-treated Mid BB
- Seat clamp: Integrated
- Dropouts: 8mm investment cast with integrated chain tensioners
| Frame material: | Full 4130 Chromoly, heat-treated |
| Top tube: | 20.5" / 20.75" / 21" |
| Head tube: | 75.5° |
| Seat tube: | 71° |
| Chainstay: | 320 mm (12.75″ slammed) |
| Standover: | 9" |
| BB height: | 11.625″ |
| Headset: | Integrated headset |
| Gyro tabs holes: | yes |
| Frame Weight: | 2.13 kg |
| Colour: | Grey |
